Package Substations & Unit Substations

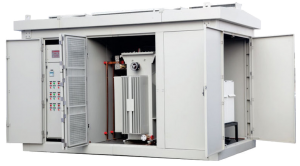

 The SALCON Electric’s Package Substations provide a compact and enclosed arrangement consisting of an MV circuit breaker, isolator or     Ring Main Unit, an MV/LV Cast Resin Transformer housed within a ventilated enclosure and an LV Switchboard as one complete assembly.     They are designed to satisfy customer’s requirements. Their design engenders a high level of flexibility that covers a wide range of application.

Features

  • Ring Main Unit Transformer rating up to 2000 KVA
  • Rated impulse voltage up to 13 KV on LV side & up to 95KV / 200KV on MV side
  • Main busbars rated up to 6300A
  • Protection Class up to IP54
  • Ambient temperature up to 55 °C
  • Type tested in accordance with IEC 61330 standard for higher safety
  • Automation, monitoring and control system
  • Oil or dry type transformers
  • Extremely low noise transformer
  • Robust design
  • Designs with front as well as rear access
  • Inherent safety features like impossibility to withdraw a live circuit breaker, impossible to open the door in live condition, etc.
  • Panels are designed for fixed/draw out type ACBs or fixed /Draw out/Plug-in type MCCBs as incomer and outgoing depending upon the requirements of the customer.
  • Ample cabling space both for incoming and outgoing cables.
  • RAL 7035 color as standard
